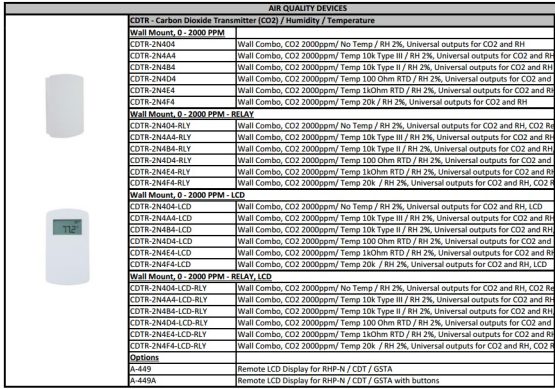

Wall Combo, CO2 2000ppm/ Temp 10k Type III / RH 2%, Universal outputs for CO2 and RH

The Series CDTR Carbon Dioxide, Relative Humidity and Temperature Transmitters reduce the number of sensors mounted on a wall or in a duct. By combining CO2, RH, and temperature in one device, system integrators are able to reduce installation time while lowering material cost at the same time.
Like our popular Series CDT Carbon Dioxide Transmitter, a non-dispersive infrared (NDIR) sensor is used to make the CO2 measurement. In order to achieve the best possible accuracy, the Series CDTR also includes digital barometric pressure adjustment.
Universal outputs for both carbon dioxide and relative humidity allow users to select the transmitter output to be 4-20 mA, 0-5 VDC, or 0-10 VDC to work with virtually any
building management controller. Additionally, passive thermistor or RTD sensor can be ordered for a temperature output.
For applications that require visual indication, the wall mount configurations of the Series CDTR can be ordered with an integral LCD display. The display can be configured to display temperature only, relative humidity only, CO2 only, CO2 and humidity, or CO2 and temperature. To prevent tampering, the action of the buttons can be locked out using an internal jumper selection.
The Series CDTR CO2 transmitters are available with a -S option that provides the necessary attributes and parameters to be complaint with DSA requirements for monitoring CO2 levels in schools. There is a front facing LED that illuminates when the CO2 level exceeds 1100 PPM.
