CDA-TT1N11 0-10V Wall Temperature Transmitter

Name: CDA-TT1N11 0-10V Wall Temperature Transmitter
Brand: Controls Direct
SKU: H1N-211700-1-1-1-1
Availability: InStock
Rating: 5 (1 reviews)

Original price was: $159.00.Current price is: $135.00.

Room/Wall Mount Temperature Transmitter TT1N1，Indoor temperature sensor Thermistor: PT1000, CLASS A ± 0.5℃ @ 0~50℃

PT1000 Class A Sensor trusted for accurate and stable temperature measurement in industrial and HVAC systems.

Please note; Minimum order numbers may apply depending on stock availability at time of order.

SKU: H1N-211700-1-1-1-1 Categories: ABCS, Controls Direct Brand: ABCS

Description

TT1N11，Indoor temperature Transmitter: Output 0-10vdc, Range 0~50°C

Thermistor: PT1000 ± 0.2℃ @ 25℃ (Class A – High Accuracy)

They offer stable, accurate temperature measurement and are widely used in industrial and HVAC applications.

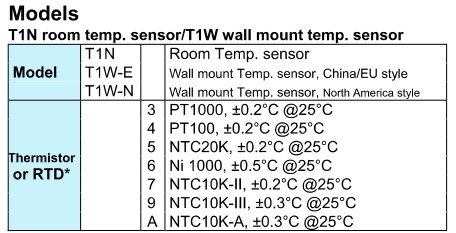

TT1N series temperature transmitter
Sensor: PT1000, Class A
Range: see models
Output: TT1N21, 4~20mA (2 wires) or TT1N11, 0~10VDC
Output Load: ≤500Ω (current), ≥3KΩ (voltage)
Accuracy: ±0.5°C @ 0~50°C, see accuracy curve
Power: Current 18.5~35VDC (RL=500Ω); 8.5~35VDC (RL=0Ω)
Voltage 16~35VDC, 16~28VAC

Work Temp.: 0~70°C, 0~95%RH (Non cond.)
Storage Temperature: -30~70°C
Housing: T1N/TT1N: fire retardant PC (UL94V-0)
T1W: Stainless steel
Protection: IP30
Weight: T1N: 95g; T1W-E: 95g; T1W-N: 80g; TT1N: 115g
Approval: CE
