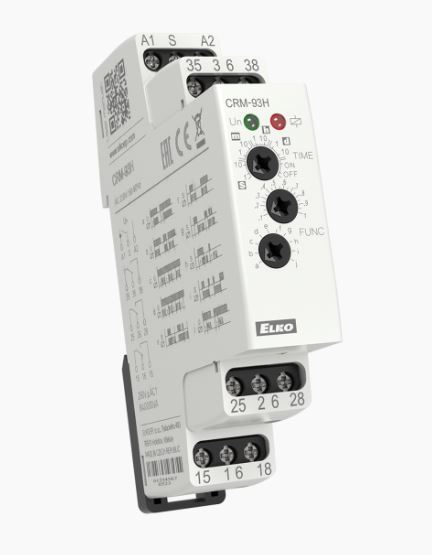

Elko CRM-93H Multifunction Timer Relay

Multifunction time relay to be used for electrical appliances, control of lights, heating, motors, pumps, fans,
due to its complexity (10 functions, 10 time ranges, multivoltage, 16Amps or 3x8Amps contacts)

Multifunction time relay for universal use in automation, control and regulation or in house installations.
Comfortable and well-arranged function and time-range setting by rotary switches.
Multifunction red LED flashes or shines depending on the operating status.

TECHNICAL PARAMETERS
Output: 3x CO, 8 A
Housing: 1-MODULE
Supply voltage (frequency): AC/DC 12-240 V or AC 230 V (50/60 Hz)
Time range: 0.1 s – 10 days (10 ranges)
Number of functions:10
Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
