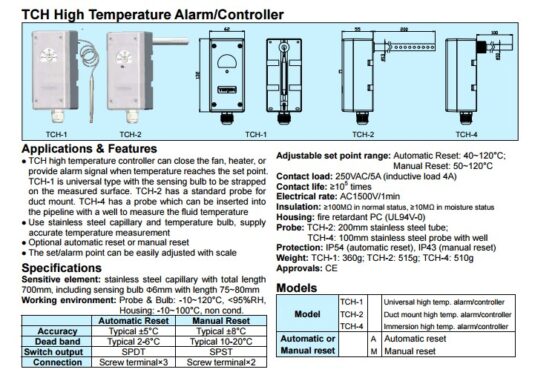

High Limit Thermostat, EDH, Manual Reset

Specifications

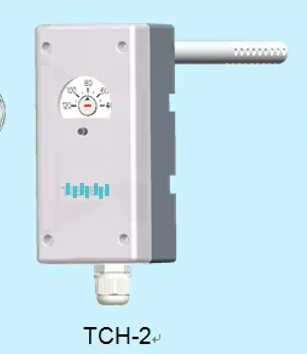

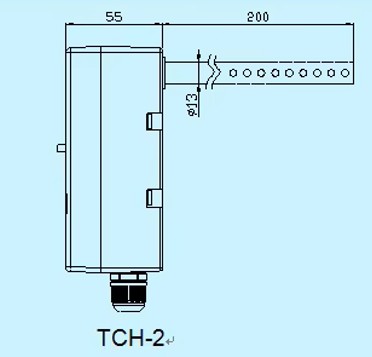

Sensitive element: Probe: TCH-2: 200mm stainless steel tube
Working environment: Probe & Bulb: -10~120°C, <95%RH,
Housing: -10~100°C, non cond.
Manual Reset
Accuracy Typical ±8°C
Dead band Typical 10-20°C
Switch output SPST
Connection Screw terminal×2
Adjustable set point range: Manual Reset: 50~120°C
Contact load: 250VAC/5A (inductive load 4A)
Electrical rate: AC1500V/1min
Insulation: ≥100MΩ in normal status, ≥10MΩ in moisture status
Housing: fire retardant PC (UL94V-0)
Protection: IP43 (manual reset)
Weight: TCH-1: 360g; TCH-2: 515g; TCH-4: 510g
Approvals: CE
