SHT-1306-UR

Name: SHT-1306-UR
Brand: Temp & Humidity
SKU: SHT-1301-UR-1
Availability: InStock
Rating: 5 (1 reviews)

Original price was: $560.00.Current price is: $505.29.

Model SHT-1306-

UR active, 2x 0..10V + PT1000
Power supply 15..24 V = (±10%) or 24 V ~ (±10%) SELV
Power consumption typ. 0,3 W (24 V =) | 0,5 VA (24 V ~)
Measuring range temperature 0..+50 °C
Measuring range humidity 0..100% rH non-condensing
Analogue output 2x 0..10 V, min. load 10 kΩ
Accuracy temperature active ±0,5 K (typ. at 21 °C within default measuring range)
PT1000 IEC 751 | EN 60751 B: ±0,3 °C / 0 °C
Accuracy humidity ±2% between 10..90% rH (typ. at 21 °C)
Enclosure PC, pure white
Protection IP30 according to EN 60529

SKU: SHT-1301-UR-1 Categories: Johnson Controls, Sensors, Temp & Humidity Tag: Johnson Controls Brand: Johnson Controls

Description
Reviews (0)

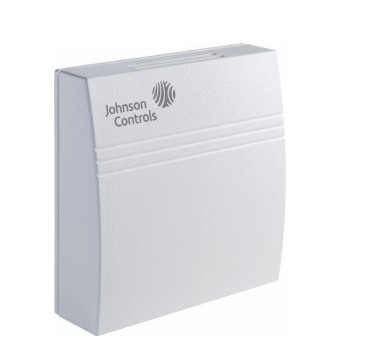

JOHNSON CONTROLS SHT-1306-UR Room climate sensor

Features
Power Supply 15..24 VDC (±10%) or 24 VAC (±10%)
Flexible application
Humidity Accuracy 2% RH from 10 to 90% RH
More accurate humidity control and energy savings
Additional temperature output
Suitable for a wider range of applications
Snap-on Enclosure
Allows a quick and easy mounting of the device and saves installation costs
Modern and attractive cover with mounting base
Blends in with room decor. Easy installation.
Polymer humidity sensing element is integrated onto a chip
Provides stability, repeatability and linear response.

stockings in JC Europe warehouse.
