SHT-1301-UR

Name: SHT-1301-UR
Brand: Temp & Humidity
SKU: SHT-1301-UR
Availability: InStock
Rating: 5 (1 reviews)

Original price was: $613.66.Current price is: $552.29.

Humidity +temperature, 2.5%,

Model SHT-1301-UR

Output active, 2x 0..10V, temperature + relative humidity
Power supply 15..35 Vdc = or 19..29 V ac
Power consumption max. 0,4 W (24 V =) | 0,8 VA (24 V ~)
Measuring range temperature 0..+50 °C
Measuring range humidity 0..100% rH
Analogue output 0..10 V, min. load 10 kΩ
Accuracy temperature ±0,5K (typ. at 21 °C)
Accuracy humidity ±2% between 10..90% rH (typ. at 21 °C)
Enclosure PC V0, pure white

SKU: SHT-1301-UR Categories: Johnson Controls, Sensors, Temp & Humidity Tag: Johnson Controls Brand: Johnson Controls

Description
Reviews (0)

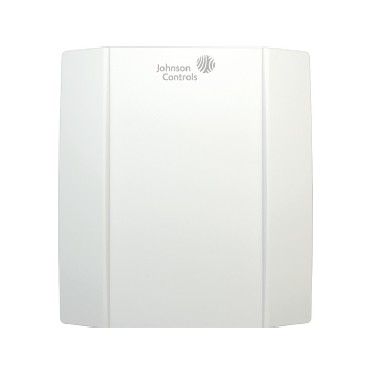

JOHNSON CONTROLS ROOM / WALL HR SENSOR

Features
Power Supply 15..24 VDC (±10%) or 24 VAC (±10%)
Flexible application
Humidity Accuracy 2% RH from 10 to 90% RH
More accurate humidity control and energy savings
Additional temperature output
Suitable for a wider range of applications
Snap-on Enclosure
Allows a quick and easy mounting of the device and saves installation costs
Modern and attractive cover with mounting base
Blends in with room decor. Easy installation.
Polymer humidity sensing element is integrated onto a chip
Provides stability, repeatability and linear response.
